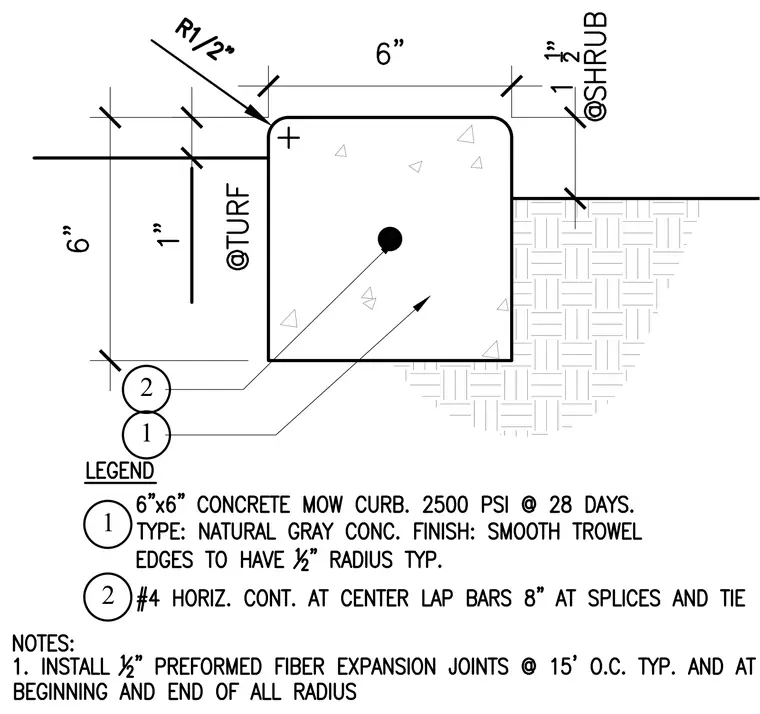

A six-inch by six-inch concrete mow curb with twenty-five hundred psi compressive strength at twenty-eight days features a natural gray smooth trowel finish. The top outside edge has a one-half-inch radius typical. A number four horizontal continuous reinforcing bar is positioned at the center with eight-inch laps at splices and ties. One-half-inch preformed fiber expansion joints are installed at fifteen feet on center typical and at the beginning and end of all radii.
