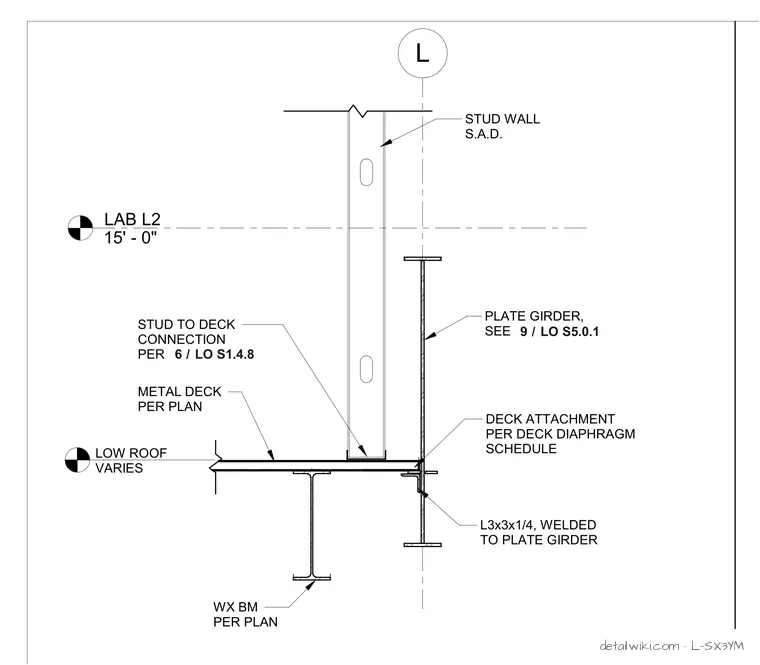

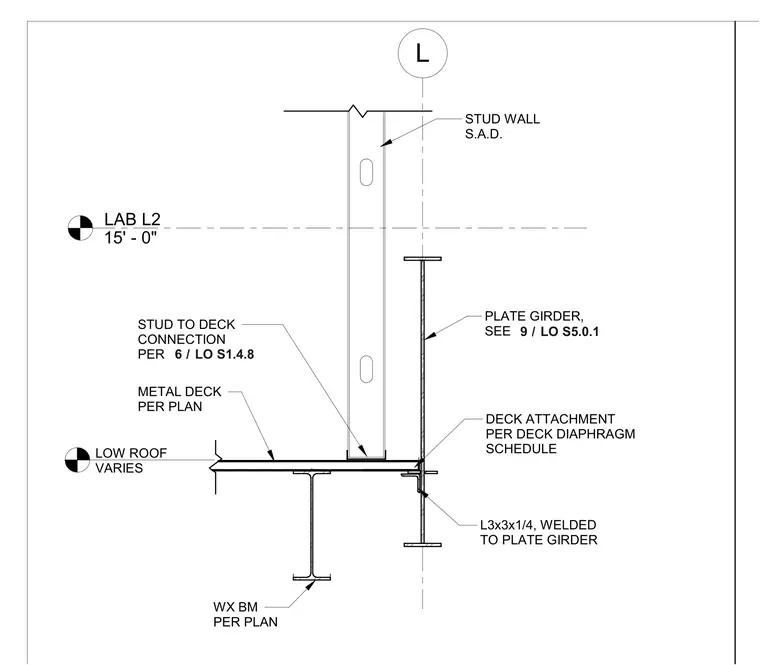

L-SX3YM — Low Roof To Plate Girder

Landscape · L-SX3YM

Low Roof To Plate Girder

Scale: 3/4" = 1'-0"
Units: imperial
Sheet: LO-S5.0.1
Discipline: Landscape

Materials

Metal (misc.)Steel Timber / Wood

Elements

Beams Connections / Plates Decks Roofs Walls

Connections

Deck Attachment Welded Connection

Text on the drawing

LAB L2 15' - 0" L WX BM PER PLAN METAL DECK PER PLAN STUD WALL S.A.D. PLATE GIRDER, SEE L3x3x1/4, WELDED TO PLATE GIRDER / 9 LO S5.0.1 STUD TO DECK CONNECTION PER / 6 LO S1.4.8 DECK ATTACHMENT PER DECK DIAPHRAGM SCHEDULE LOW ROOF VARIES
