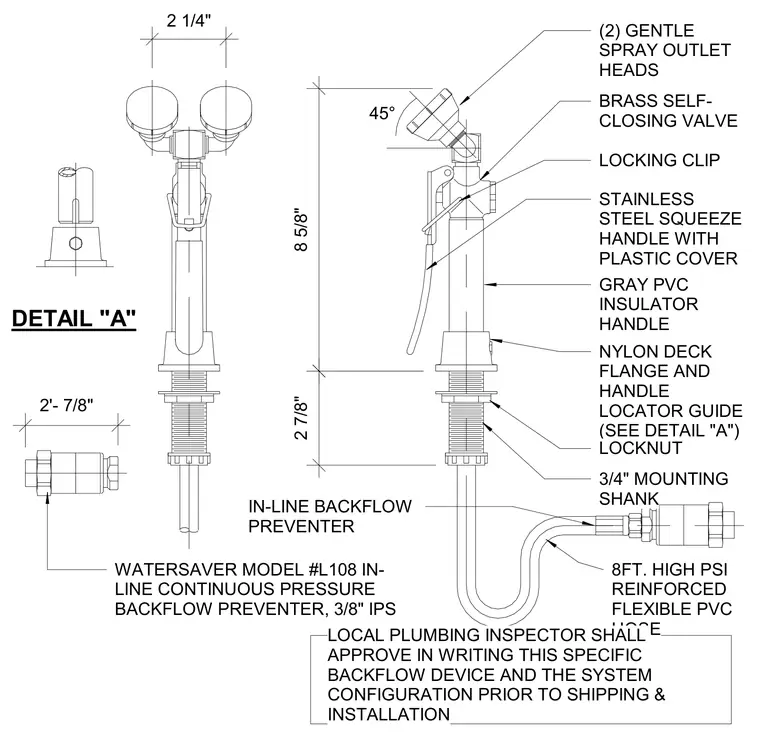

This assembly consists of two gentle spray outlet heads angled at 45 degrees, connected to a brass self-closing valve with a locking clip and stainless steel squeeze handle. The valve is enclosed in a gray PVC insulator handle and secures through a nylon deck flange and handle locator guide with a locknut and a three-quarter-inch mounting shank. An eight-foot high-pressure reinforced flexible PVC hose connects to an in-line continuous pressure backflow preventer with three-eighths-inch iron pipe size connections. Local plumbing inspector approval in writing is required for the specific backflow device and system configuration prior to shipping and installation.
2 7/8" 8 5/8" DETAIL "A" 2 1/4" 8FT. HIGH PSI REINFORCED FLEXIBLE PVC HOSE WATERSAVER MODEL #L108 IN- LINE CONTINUOUS PRESSURE BACKFLOW PREVENTER, 3/8" IPS 2'- 7/8" LOCKING CLIP 3/4" MOUNTING SHANK (2) GENTLE SPRAY OUTLET HEADS BRASS SELF- CLOSING VALVE STAINLESS STEEL SQUEEZE HANDLE WITH PLASTIC COVER GRAY PVC INSULATOR HANDLE NYLON DECK FLANGE AND HANDLE LOCATOR GUIDE (SEE DETAIL "A") LOCKNUT 45° IN-LINE BACKFLOW PREVENTER LOCAL PLUMBING INSPECTOR SHALL APPROVE IN WRITING THIS SPECIFIC BACKFLOW DEVICE AND THE SYSTEM CONFIGURATION PRIOR TO SHIPPING & INSTALLATION
