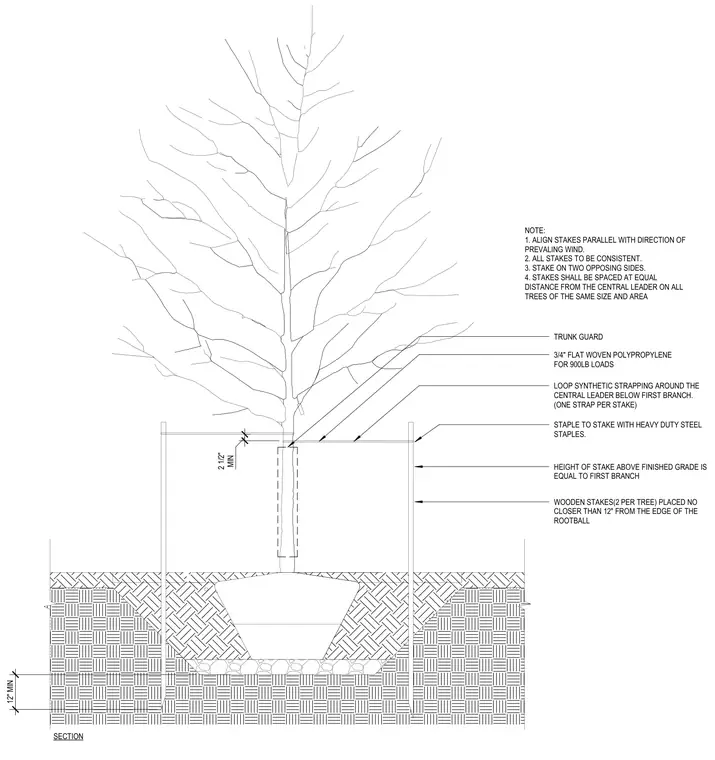

Two wooden stakes are placed on opposing sides no closer than twelve inches from the edge of the rootball, aligned parallel with the direction of prevailing wind. The height of each stake above finished grade extends equal to the first branch of the tree. A trunk guard wraps the central leader below the first branch. Three-quarter-inch flat woven polypropylene strapping rated for nine-hundred-pound loads loops around the central leader below the first branch, providing one strap per stake. Heavy-duty steel staples attach the strapping to each wooden stake.
SECTION NOTE: 1. ALIGN STAKES PARALLEL WITH DIRECTION OF PREVALING WIND. 2. ALL STAKES TO BE CONSISTENT. 3. STAKE ON TWO OPPOSING SIDES. 4. STAKES SHALL BE SPACED AT EQUAL DISTANCE FROM THE CENTRAL LEADER ON ALL TREES OF THE SAME SIZE AND AREA MIN 2 1/2" 12" MIN TRUNK GUARD LOOP SYNTHETIC STRAPPING AROUND THE CENTRAL LEADER BELOW FIRST BRANCH. (ONE STRAP PER STAKE) STAPLE TO STAKE WITH HEAVY DUTY STEEL STAPLES. HEIGHT OF STAKE ABOVE FINISHED GRADE IS EQUAL TO FIRST BRANCH WOODEN STAKES(2 PER TREE) PLACED NO CLOSER THAN 12" FROM THE EDGE OF THE ROOTBALL 3/4" FLAT WOVEN POLYPROPYLENE FOR 900LB LOADS
