Landscape · L-ST6YP

Stabilized Aggregate Paving Edge with Metal Edging

Materials

Elements

About this detail

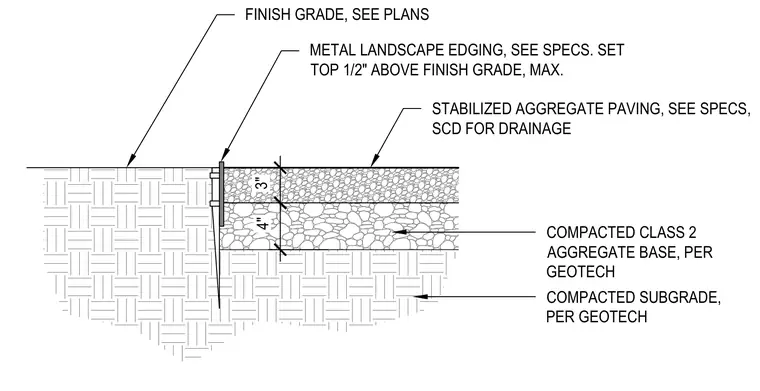

Stabilized aggregate paving sits at three inches thick over a four-inch compacted Class 2 aggregate base and compacted subgrade per geotech requirements. Metal landscape edging restrains the paving edge and is set a maximum of one-half inch above the finish grade.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.

Start membership

Similar details
