Concrete Paving Isolation Joint at Vertical Element

Materials

Elements

Walls Stairs Vaults / Domes Site / Paving

About this detail

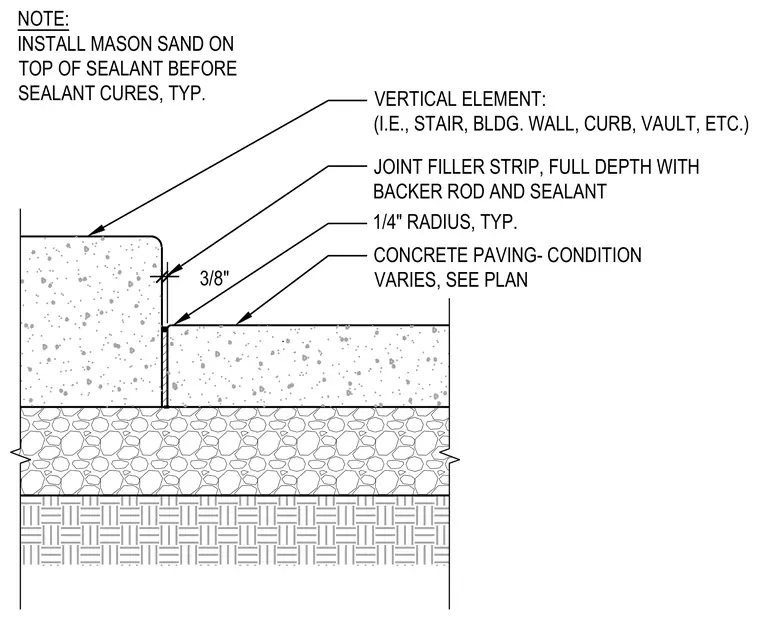

An isolation joint separates concrete paving from adjacent vertical elements such as stairs, building walls, curbs, or vaults. A joint filler strip spans the full depth of the joint, complemented by a backer rod and sealant with a three-eighths inch width. The concrete paving edge is finished with a typical one-quarter inch radius. Mason sand is installed on top of the sealant before the sealant cures.
