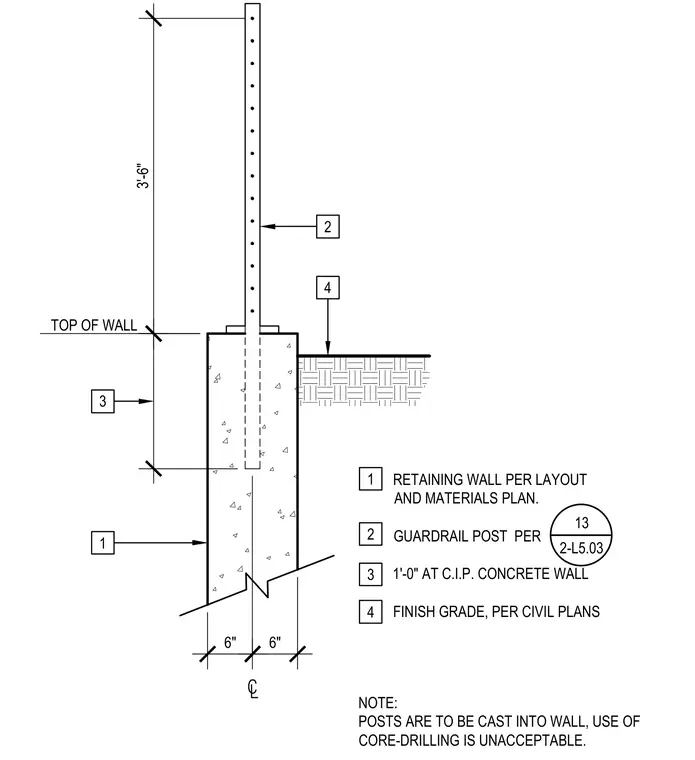

A guardrail post is cast directly into a cast-in-place concrete retaining wall, with core-drilling explicitly prohibited per project notes. The post extends three feet six inches above the top of the wall. The retaining wall features a twelve-inch thickness centered on the post alignment. Finish grade is established per civil plans adjacent to the wall structure.
1 2 13 2-L5.03 3 4 . TOP OF WALL 6" 6" 3'-6" 2 1 3 4 NOTE: POSTS ARE TO BE CAST INTO WALL, USE OF CORE-DRILLING IS UNACCEPTABLE. RETAINING WALL PER LAYOUT AND MATERIALS PLAN. GUARDRAIL POST PER 1'-0" AT C.I.P. CONCRETE WALL FINISH GRADE, PER CIVIL PLANS
