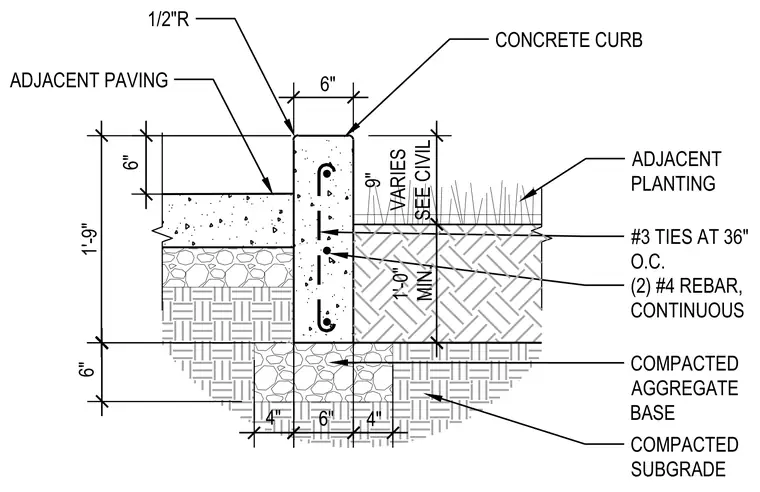

A reinforced concrete curb is set upon a compacted aggregate base and compacted subgrade. The curb features two continuous number four rebars and number three ties spaced at thirty-six inches on center. Adjacent paving abuts one side of the curb over a six-inch compacted aggregate base, while adjacent planting abuts the opposite side. The top corner of the curb is detailed with a half-inch radius.
6" 4" 1'-9" 6" 6" 4" ADJACENT PLANTING CONCRETE CURB 1/2"R (2) #4 REBAR, CONTINUOUS #3 TIES AT 36" O.C. ADJACENT PAVING 6" COMPACTED AGGREGATE BASE COMPACTED SUBGRADE 9" VARIES SEE CIVIL 1'-0" MIN.
