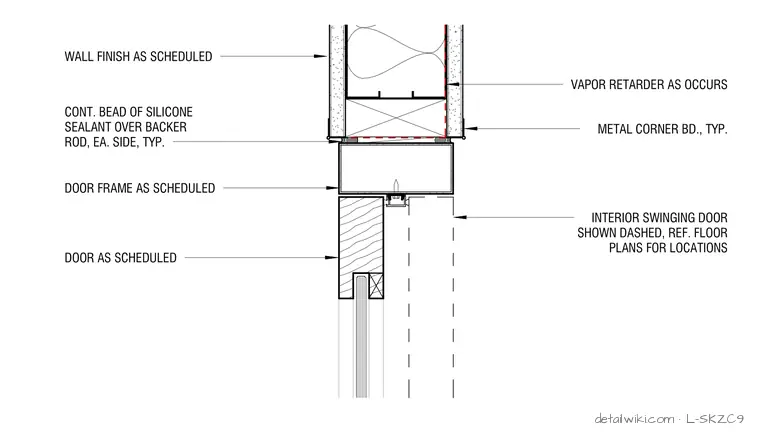

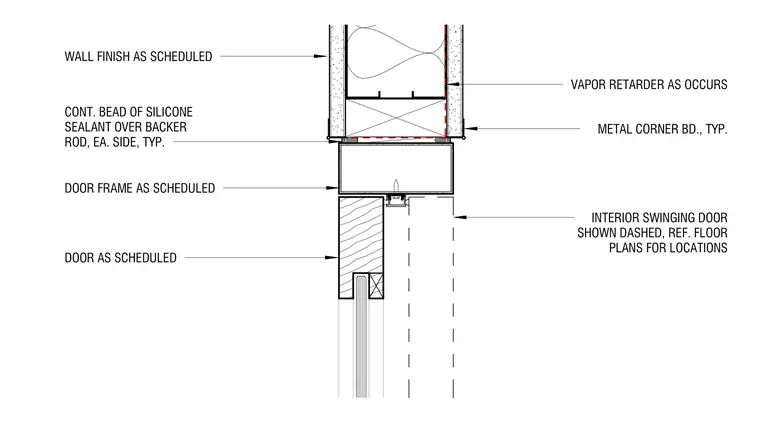

An interior swinging door and frame set within a framed wall partition. The assembly incorporates a door frame as scheduled with a door as scheduled shown dashed and referenced to floor plans for locations. Wall finishes are applied per schedule over framing with a vapor retarder installed as occurs. A continuous bead of silicone sealant over a backer rod is detailed at each side of the frame head, and metal corner beads are provided typically at the wall edges.
DOOR FRAME AS SCHEDULED DOOR AS SCHEDULED INTERIOR SWINGING DOOR SHOWN DASHED, REF. FLOOR PLANS FOR LOCATIONS WALL FINISH AS SCHEDULED CONT. BEAD OF SILICONE SEALANT OVER BACKER ROD, EA. SIDE, TYP. METAL CORNER BD., TYP. VAPOR RETARDER AS OCCURS
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
