A recessed center box is integrated into a tabletop assembly constructed from one-inch thick Richlite Stratum surface material over three-quarter-inch maple plywood. A five-inch radius brushed aluminum plate frames the central box opening and routes wiring through the lid. Audio, video, and power cabling routes through the vertical cable cubby housed beneath the tabletop cutout. The surrounding table structure includes matching one-inch Richlite Stratum panels extending beyond the central connection zone.

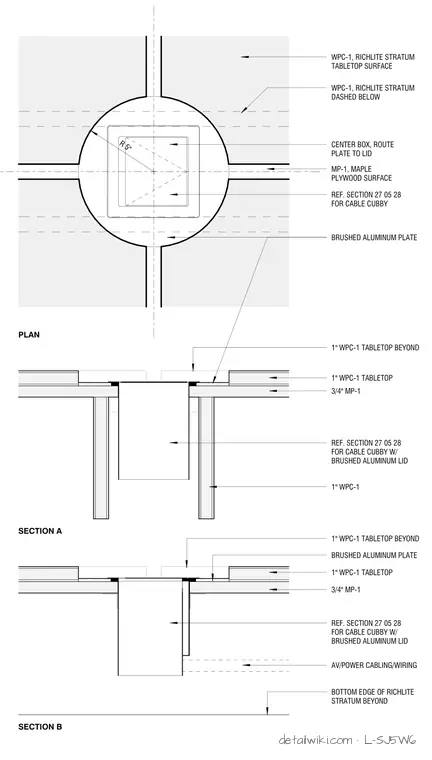

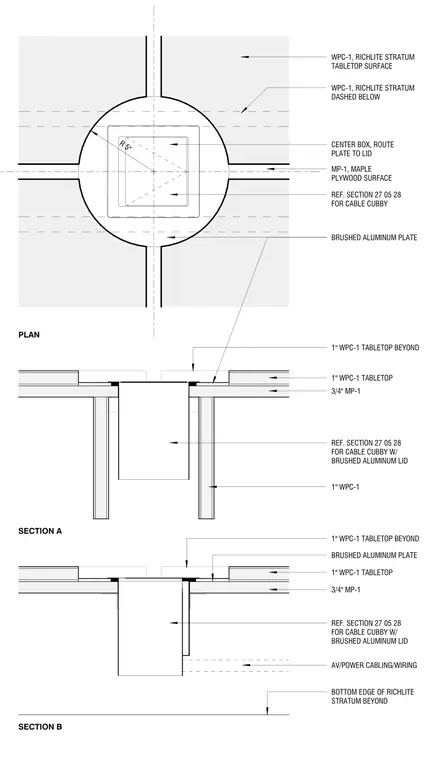

R 5" BRUSHED ALUMINUM PLATE CENTER BOX, ROUTE PLATE TO LID REF. SECTION 27 05 28 FOR CABLE CUBBY W/ BRUSHED ALUMINUM LID PLAN SECTION A WPC-1, RICHLITE STRATUM DASHED BELOW 1" WPC-1 REF. SECTION 27 05 28 FOR CABLE CUBBY W/ BRUSHED ALUMINUM LID SECTION B BOTTOM EDGE OF RICHLITE STRATUM BEYOND AV/POWER CABLING/WIRING 1" WPC-1 TABLETOP 3/4" MP-1 1" WPC-1 TABLETOP 3/4" MP-1 BRUSHED ALUMINUM PLATE WPC-1, RICHLITE STRATUM TABLETOP SURFACE MP-1, MAPLE PLYWOOD SURFACE REF. SECTION 27 05 28 FOR CABLE CUBBY 1" WPC-1 TABLETOP BEYOND 1" WPC-1 TABLETOP BEYOND
