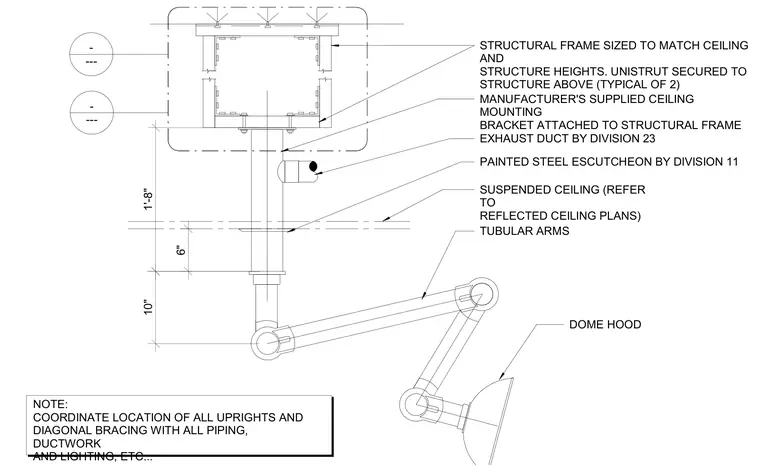

An articulating exhaust snorkel assembly is suspended from an overhead structural frame secured with Unistrut channels. A manufacturer-supplied ceiling mounting bracket attaches to the structural frame and supports the vertical exhaust duct, which transitions through the suspended ceiling with a painted steel escutcheon. Tubular arms extend downward to a dome hood for localized fume or exhaust capture. The structural frame is sized to match surrounding ceiling and structure heights, and uprights are coordinated with existing MEP services.
1'-8" 10" 6" NOTE: COORDINATE LOCATION OF ALL UPRIGHTS AND DIAGONAL BRACING WITH ALL PIPING, DUCTWORK AND LIGHTING, ETC... STRUCTURAL FRAME SIZED TO MATCH CEILING AND STRUCTURE HEIGHTS. UNISTRUT SECURED TO STRUCTURE ABOVE (TYPICAL OF 2) EXHAUST DUCT BY DIVISION 23 SUSPENDED CEILING (REFER TO REFLECTED CEILING PLANS) TUBULAR ARMS DOME HOOD PAINTED STEEL ESCUTCHEON BY DIVISION 11 MANUFACTURER'S SUPPLIED CEILING MOUNTING BRACKET ATTACHED TO STRUCTURAL FRAME --- - --- -
