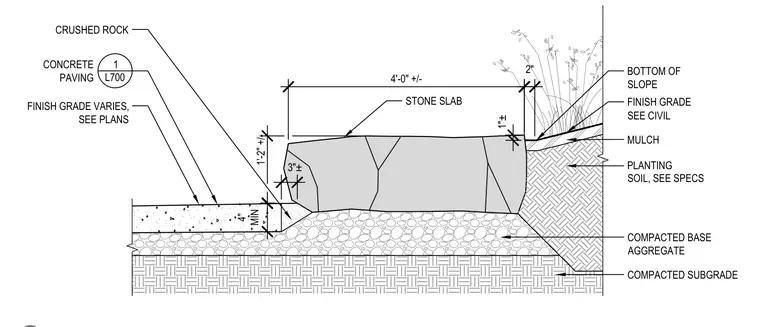

A stone slab seat rests on a layer of compacted base aggregate over a compacted subgrade, positioned adjacent to concrete paving and a planted slope. The four-foot-wide stone slab features a thickness of approximately one foot two inches and ties into a mulched planting soil bed. Crushed rock fills the interface between the concrete paving and the stone seat base, with finish grades varying per civil and landscape plans.
1'-2" +/- 1"± 2" CONCRETE PAVING 1 L700 4'-0" +/- FINISH GRADE VARIES, SEE PLANS STONE SLAB PLANTING SOIL, SEE SPECS FINISH GRADE SEE CIVIL BOTTOM OF SLOPE MULCH COMPACTED SUBGRADE COMPACTED BASE AGGREGATE CRUSHED ROCK 4" MIN 3"±
