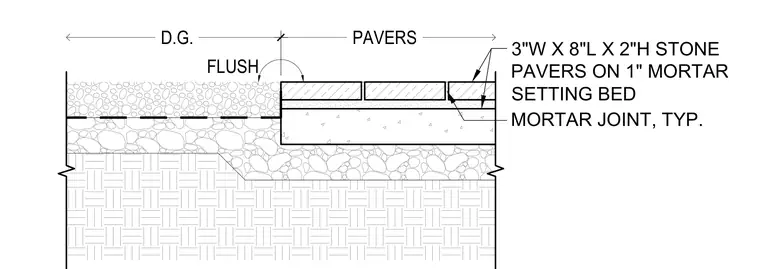

Three-inch-wide by eight-inch-long by two-inch-high stone pavers are set on a one-inch mortar setting bed with typical mortar joints flush with adjacent decomposed granite paving. The assembly rests on a concrete slab supported by compacted base course and subgrade.
D.G. PAVERS 3"W X 8"L X 2"H STONE PAVERS ON 1" MORTAR SETTING BED MORTAR JOINT, TYP. FLUSH
