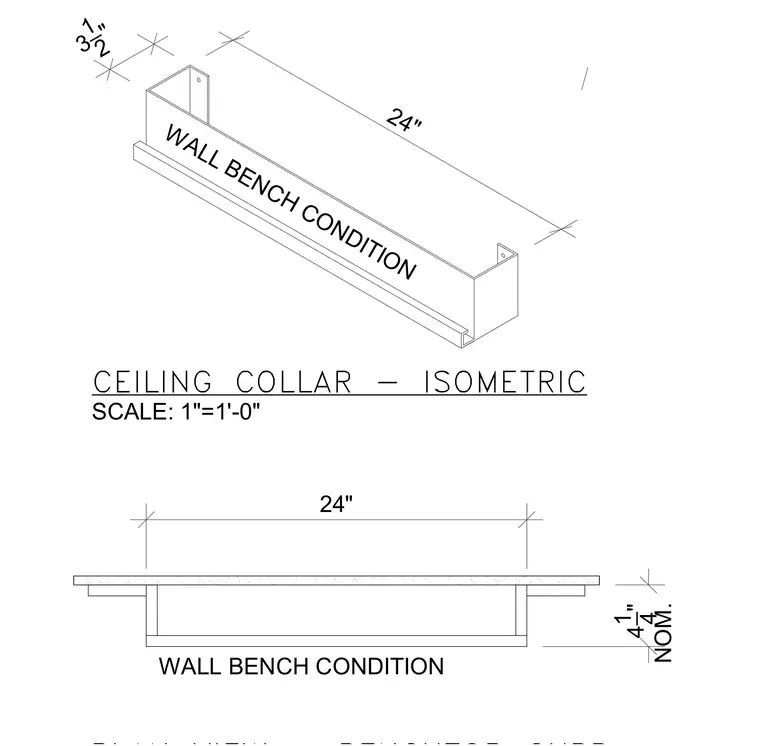

An isometric drawing and plan layout detail a wall bench condition with a ceiling collar assembly. The overall length is dimensioned at twenty-four inches with a depth of three and one-half inches and a nominal vertical dimension of four and one-quarter inches. The isometric projection illustrates the channel-like profile of the collar component fitted against the wall surface.
WALL BENCH CONDITION SCALE: 1"=1'-0" CEILING COLLAR - ISOMETRIC WALL BENCH CONDITION 24" 41_ 4 " NOM. 31_ 2 " 24"
