The assembly consists of a 4-inch layer of 3/8-inch clear crushed aggregate adjacent to a concrete paving slab, both supported by a 6-inch compacted aggregate base. A geotextile fabric separates the aggregate base from the compacted subgrade below. A 6-inch geotextile extension is provided under adjacent paving where sequencing allows. Trenching is restricted from occurring within 24 inches of the aggregate paving.

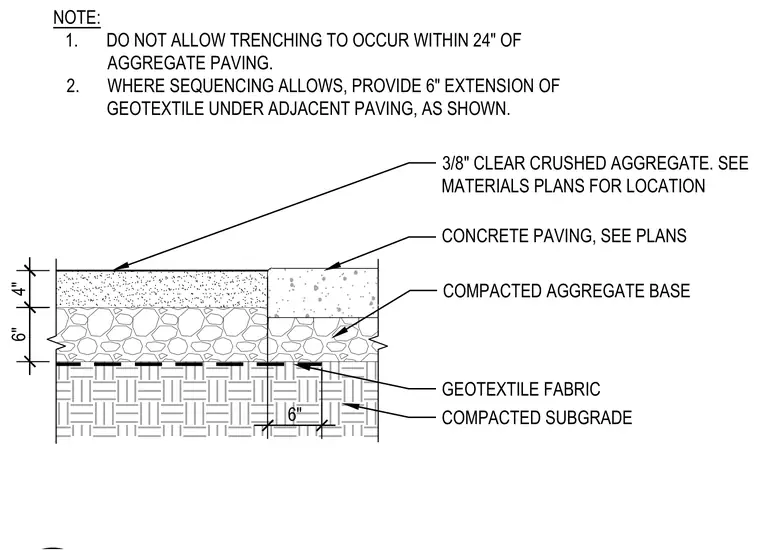

6" 4" NOTE: 1. DO NOT ALLOW TRENCHING TO OCCUR WITHIN 24" OF AGGREGATE PAVING. 2. WHERE SEQUENCING ALLOWS, PROVIDE 6" EXTENSION OF GEOTEXTILE UNDER ADJACENT PAVING, AS SHOWN. 6" 3/8" CLEAR CRUSHED AGGREGATE. SEE MATERIALS PLANS FOR LOCATION CONCRETE PAVING, SEE PLANS COMPACTED AGGREGATE BASE COMPACTED SUBGRADE GEOTEXTILE FABRIC
