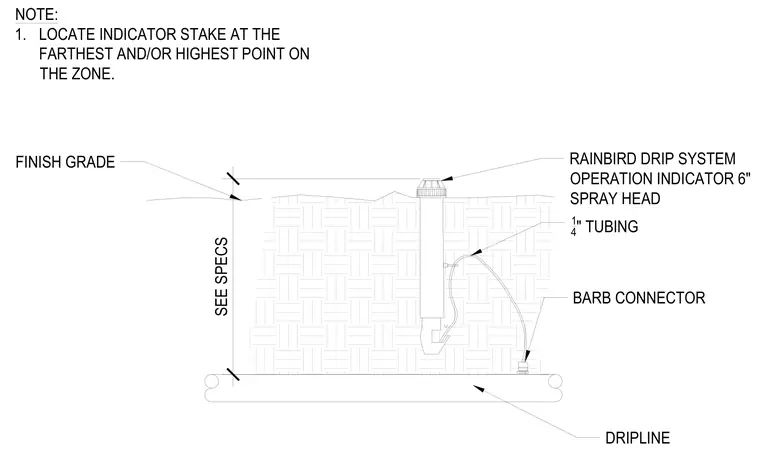

A Rainbird drip system operation indicator with a six-inch spray head is installed flush with the finish grade. One-fourth-inch tubing connects the spray head to a barb connector mounted on the main dripline. The indicator stake must be located at the farthest and or highest point on the irrigation zone, with depth sized per specifications.
NOTE: 1. LOCATE INDICATOR STAKE AT THE FARTHEST AND/OR HIGHEST POINT ON THE ZONE. DRIPLINE FINISH GRADE BARB CONNECTOR SEE SPECS 1 4 " TUBING RAINBIRD DRIP SYSTEM OPERATION INDICATOR 6" SPRAY HEAD
