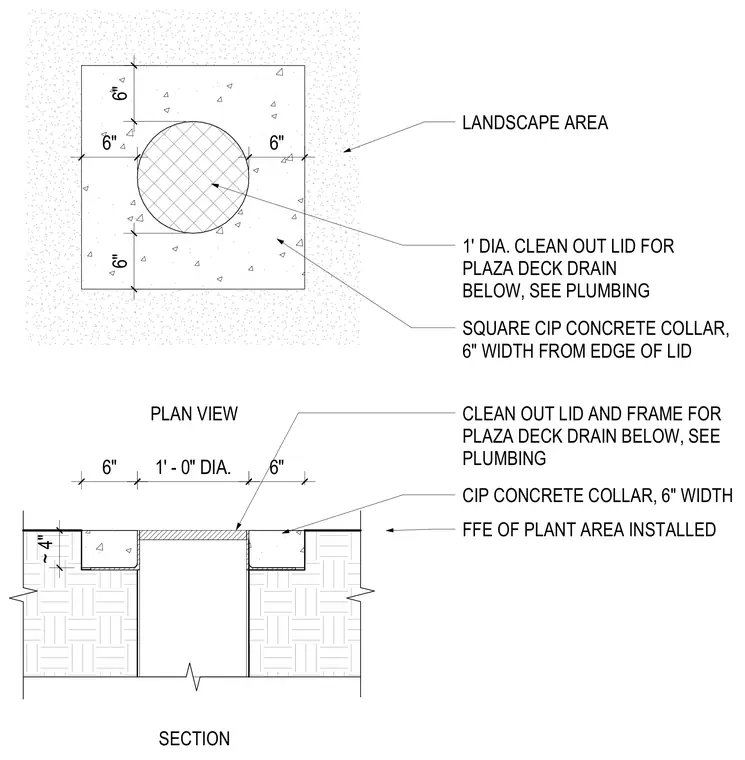

A square cast-in-place concrete collar surrounds a one-foot diameter cleanout lid and frame for a plaza deck drain. The collar features a six-inch width extending outward from the edge of the lid in plan view. The section shows a four-inch thick concrete collar set flush with the finished floor elevation of the installed planting area. The underlying plumbing and drain assembly are coordinated per the plumbing drawings.
FFE OF PLANT AREA INSTALLED ~ 4" CIP CONCRETE COLLAR, 6" WIDTH CLEAN OUT LID AND FRAME FOR PLAZA DECK DRAIN BELOW, SEE PLUMBING 1' DIA. CLEAN OUT LID FOR PLAZA DECK DRAIN BELOW, SEE PLUMBING SQUARE CIP CONCRETE COLLAR, 6" WIDTH FROM EDGE OF LID PLAN VIEW SECTION LANDSCAPE AREA 6" 6" 1' - 0" DIA. 6" 6" 6" 6"
