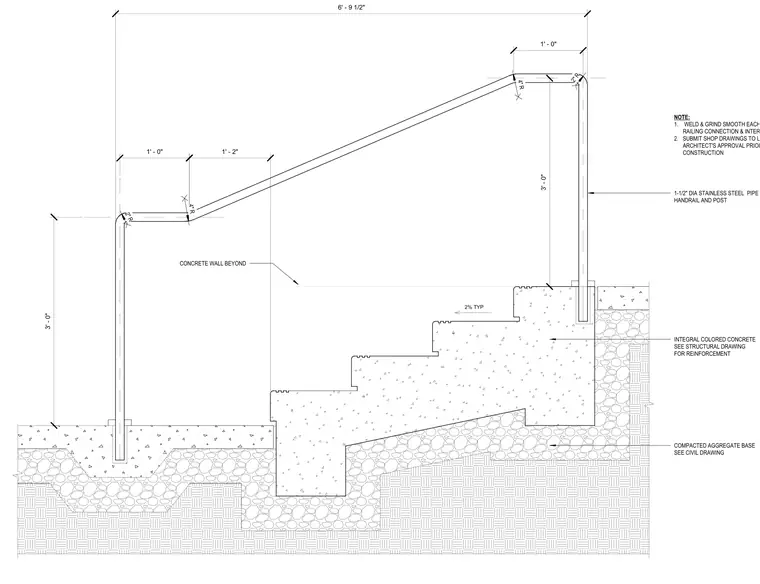

A 1-1/2 inch diameter stainless steel pipe handrail and post is anchored into integral colored concrete stairs with a 2 percent slope, set over a compacted aggregate base. All stair railing connections and intersections are welded and ground smooth. An adjacent concrete wall is located beyond.
1-1/2" DIA STAINLESS STEEL PIPE HANDRAIL AND POST NOTE: 1. WELD & GRIND SMOOTH EACH STAIR RAILING CONNECTION & INTERSECTION. 2. SUBMIT SHOP DRAWINGS TO LANDSCAPE ARCHITECT'S APPROVAL PRIOR TO CONSTRUCTION 2% TYP CONCRETE WALL BEYOND INTEGRAL COLORED CONCRETE SEE STRUCTURAL DRAWING FOR REINFORCEMENT COMPACTED AGGREGATE BASE SEE CIVIL DRAWING 6' - 9 1/2" 1' - 0" 1' - 0" 1' - 2" 2" R 4" R 4" R 2" R 3' - 0" 3' - 0"
