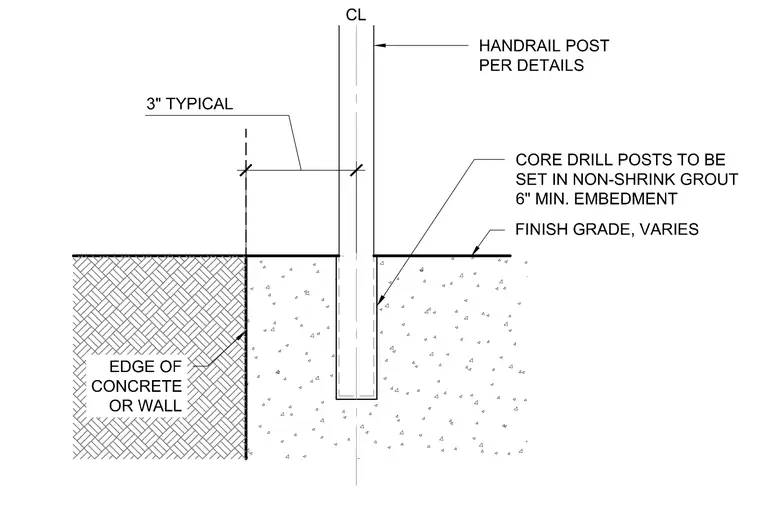

The handrail post is core drilled and set into a concrete slab or wall with a minimum six-inch embedment. Non-shrink grout fills the core hole around the post. A typical three-inch clearance is maintained from the edge of the concrete or wall to the post centerline. The finish grade varies relative to the top of the concrete surface.
CORE DRILL POSTS TO BE SET IN NON-SHRINK GROUT 6" MIN. EMBEDMENT FINISH GRADE, VARIES CL HANDRAIL POST PER DETAILS 3" TYPICAL EDGE OF CONCRETE OR WALL
