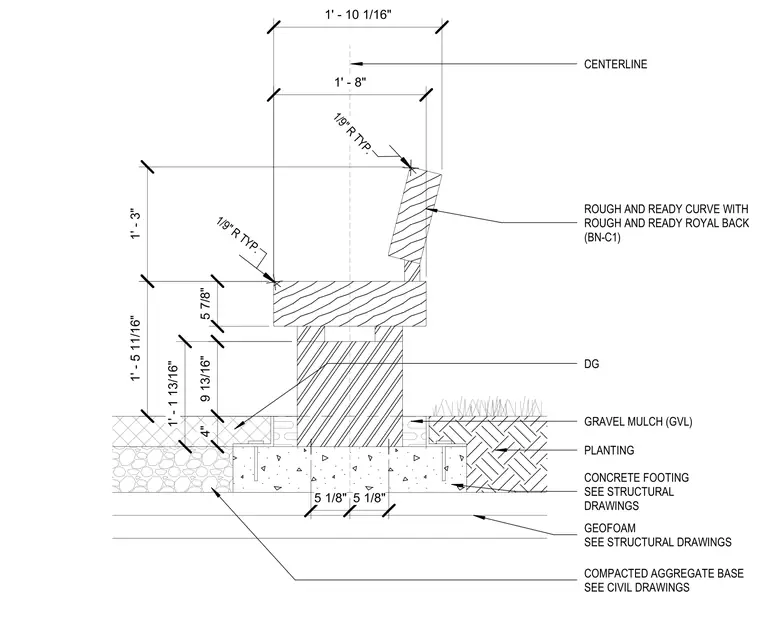

A curved bench assembly features a Rough and Ready Curve seat and Royal Back supported by a concrete pedestal. The pedestal bears on a concrete footing sized per structural drawings, which sits atop geofoam and compacted aggregate base. Surrounding grade finishes include decomposed granite, gravel mulch, and planting areas. Dimensional callouts establish the bench height, seat thickness, and footing offsets relative to the centerline.
ROUGH AND READY CURVE WITH ROUGH AND READY ROYAL BACK (BN-C1) 1' - 5 11/16" 1' - 1 13/16" 5 7/8" 1' - 8" 1' - 3" 1' - 10 1/16" GRAVEL MULCH (GVL) CONCRETE FOOTING SEE STRUCTURAL DRAWINGS PLANTING DG 4" 9 13/16" COMPACTED AGGREGATE BASE SEE CIVIL DRAWINGS GEOFOAM SEE STRUCTURAL DRAWINGS 1/9" R TYP. 1/9" R TYP. 5 1/8" 5 1/8" CENTERLINE
