Landscape · L-S8FTN

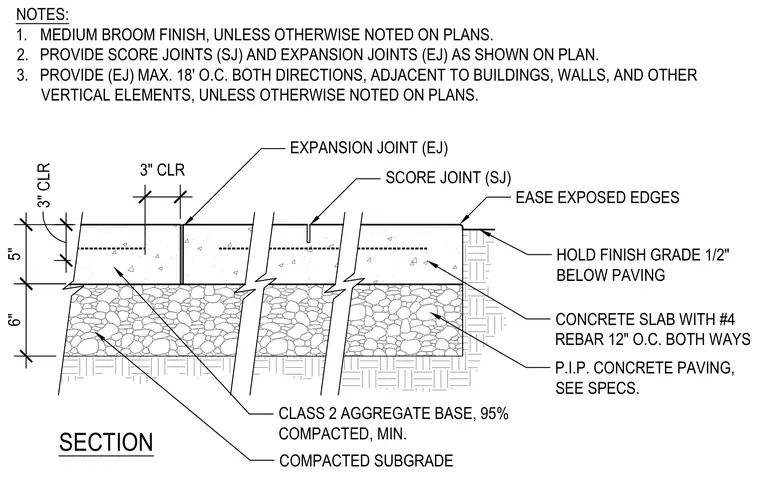

Cast-In-Place Concrete Pedestrian Paving Section

Materials

Concrete Reinforced Concrete

Elements

Floors / Slabs Expansion / Control Joints Site / Paving Reinforcing

Connections

Expansion / Slip Connection

About this detail

A cast-in-place concrete pedestrian paving assembly bears on a compacted aggregate base and subgrade. The five-inch thick concrete slab is reinforced with number four rebar at twelve inches on center both ways with three inches of clearance. The base consists of a six-inch thick Class 2 aggregate base compacted to ninety-five percent minimum. Expansion joints and score joints are provided at maximum eighteen-foot spacing on center in both directions and adjacent to vertical elements. Exposed edges are eased, and the finish grade is held one-half inch below paving.
