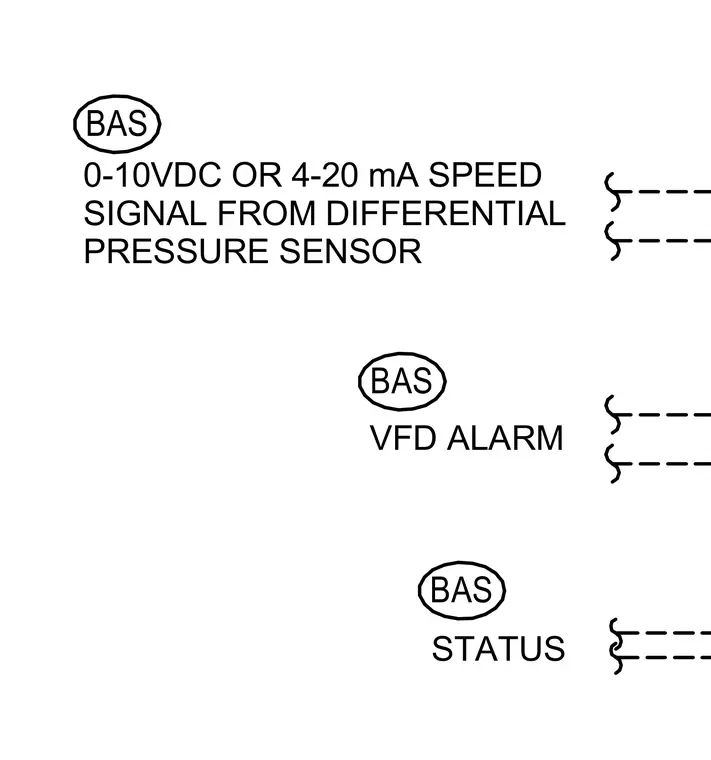

Building automation system control wiring receives a 0-10VDC or 4-20 milliamp speed signal from a differential pressure sensor. Variable frequency drive alarm and status outputs connect to the control system via corresponding monitored points.
BAS BAS BAS 0-10VDC OR 4-20 mA SPEED SIGNAL FROM DIFFERENTIAL PRESSURE SENSOR VFD ALARM STATUS
