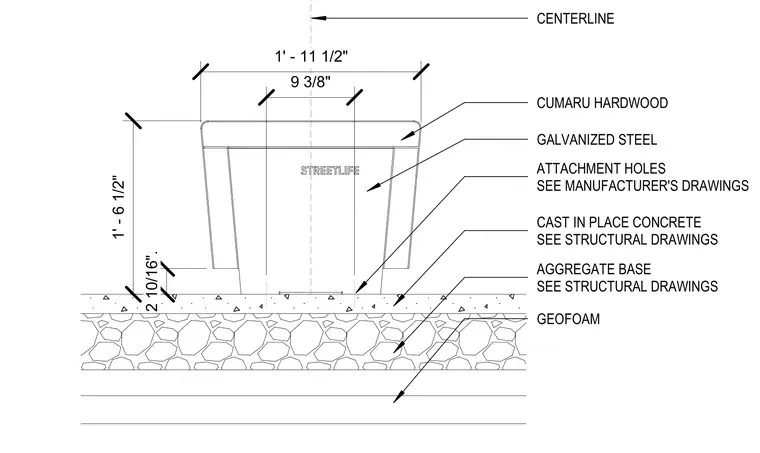

This solid skirt bench assembly features cumaru hardwood seating mounted on a galvanized steel structure with attachment holes sized per manufacturer's drawings. The bench rests on a cast-in-place concrete base, verified per structural drawings, placed over an aggregate base and layers of geofoam. Overall height measures 1'-6 1/2" with a total width of 1'-11 1/2".
1' - 11 1/2" 2 10/16". 1' - 6 1/2" CUMARU HARDWOOD GALVANIZED STEEL ATTACHMENT HOLES SEE MANUFACTURER'S DRAWINGS CAST IN PLACE CONCRETE SEE STRUCTURAL DRAWINGS AGGREGATE BASE SEE STRUCTURAL DRAWINGS GEOFOAM 9 3/8" CENTERLINE
