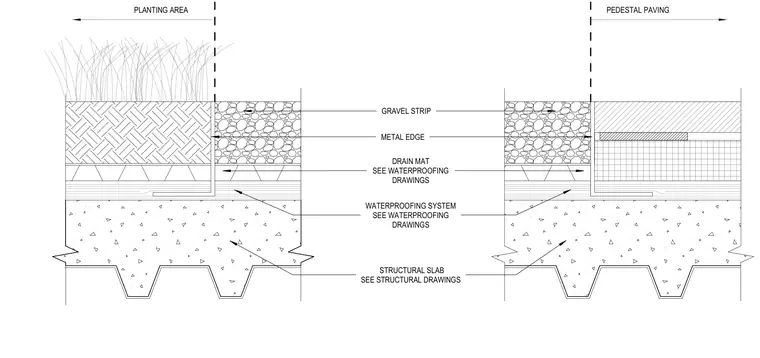

A metal edge restrains the gravel strip separating a planting area on one side and pedestal paving on the other. Below the gravel layer sits a drain mat and a waterproofing system applied over the structural slab. The assembly transitions across the metal divider to accommodate different surface finishes on the elevated deck.
METAL EDGE GRAVEL STRIP DRAIN MAT SEE WATERPROOFING DRAWINGS WATERPROOFING SYSTEM SEE WATERPROOFING DRAWINGS STRUCTURAL SLAB SEE STRUCTURAL DRAWINGS PEDESTAL PAVING PLANTING AREA
