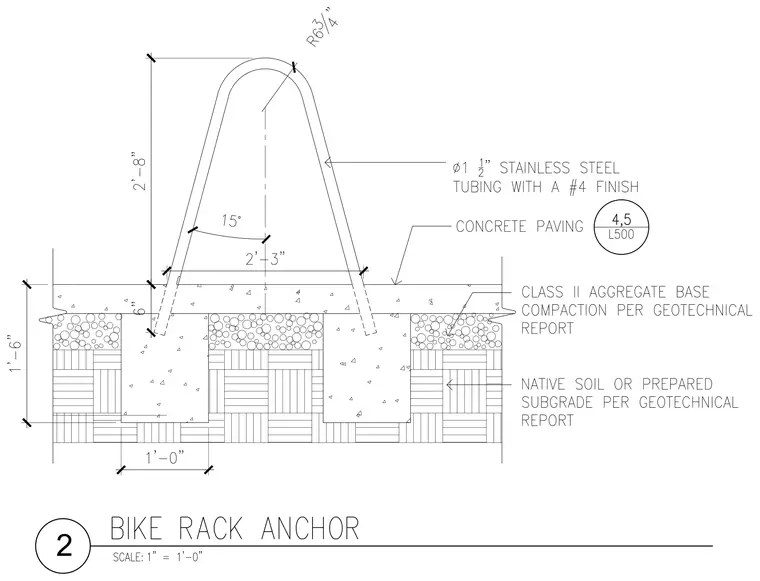

A 1-1/2 inch diameter stainless steel tubing bike rack with a number 4 finish anchors into concrete footings embedded 1 foot 6 inches below grade. The assembly penetrates concrete paving set over a Class II aggregate base and native soil or prepared subgrade per the geotechnical report. The bike rack stands 2 feet 8 inches high with a 2 foot 3 inch base width and a 6-3/4 inch radius crown.
