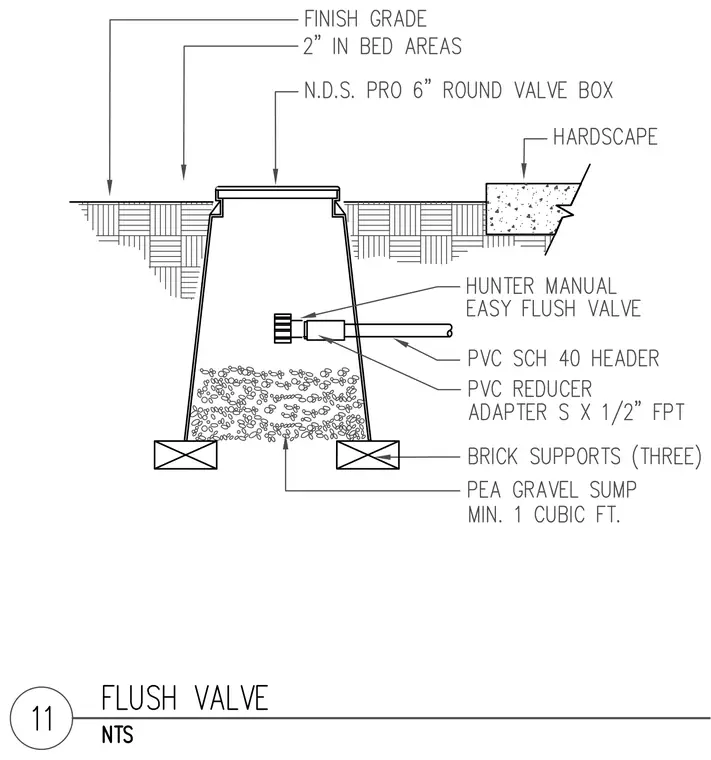

An irrigation flush valve installation featuring a Hunter manual easy flush valve connected to a PVC Schedule 40 header via a PVC reducer adapter. The valve assembly is housed inside an N.D.S. Pro 6-inch round valve box set flush with the finish grade. The base of the valve box rests on three brick supports over a pea gravel sump with a minimum volume of one cubic foot. Adjacent hardscape borders the installation area.
