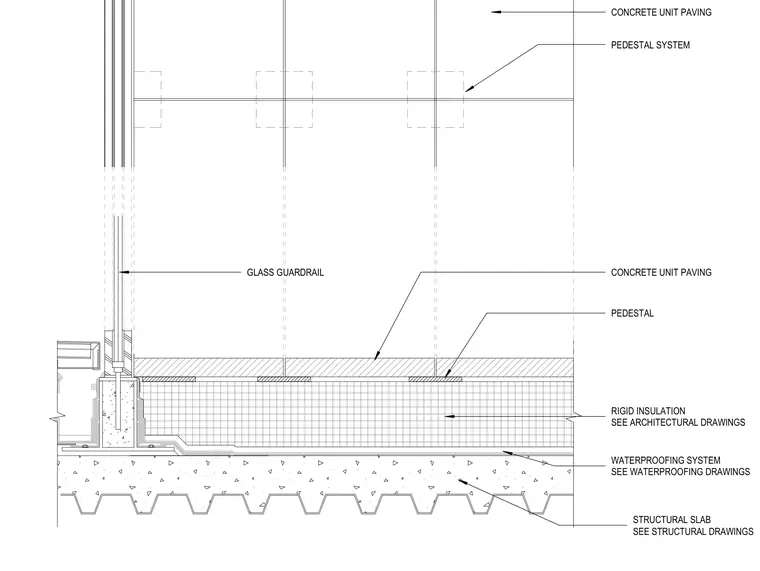

Concrete unit paving rests on an adjustable pedestal system supported by rigid insulation and a waterproofing system over a structural slab. A glass guardrail is integrated at the perimeter of the assembly, anchored into the structural substrate. The insulation and waterproofing layers are coordinated per architectural and waterproofing drawings, while the underlying slab is sized per structural drawings.
RIGID INSULATION SEE ARCHITECTURAL DRAWINGS WATERPROOFING SYSTEM SEE WATERPROOFING DRAWINGS STRUCTURAL SLAB SEE STRUCTURAL DRAWINGS CONCRETE UNIT PAVING CONCRETE UNIT PAVING PEDESTAL SYSTEM PEDESTAL GLASS GUARDRAIL
