Utility boring near trees requires maintaining a specific depth below existing grade and a minimum horizontal distance from the trunk based on trunk caliper. A six-inch shredded mulch layer covers the ground surface above the root system. The boring depth ranges from twenty-four inches minimum to forty-eight inches maximum. The edge of the bore closest to the trunk must be located at a distance of six inches per caliper inch for trees greater than ten inches in caliper, with a five-foot minimum.

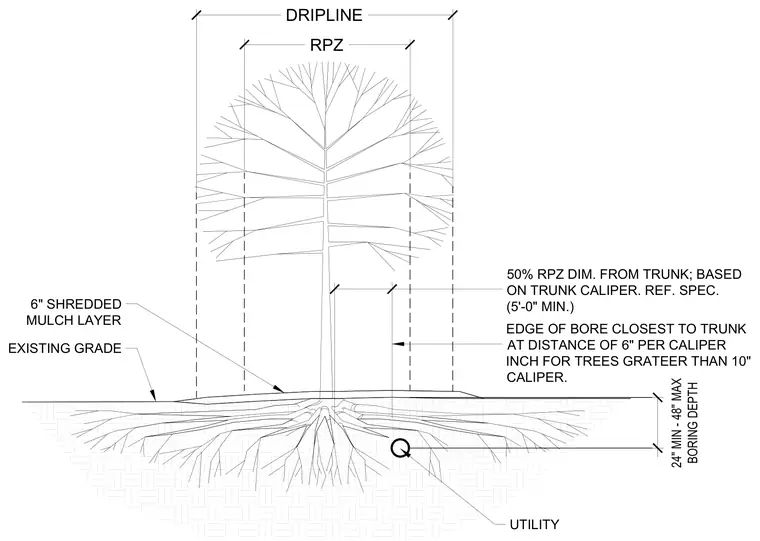

DRIPLINE RPZ UTILITY 6" SHREDDED MULCH LAYER EXISTING GRADE 24" MIN - 48" MAX BORING DEPTH 50% RPZ DIM. FROM TRUNK; BASED ON TRUNK CALIPER. REF. SPEC. (5'-0" MIN.) EDGE OF BORE CLOSEST TO TRUNK AT DISTANCE OF 6" PER CALIPER INCH FOR TREES GRATEER THAN 10" CALIPER.
