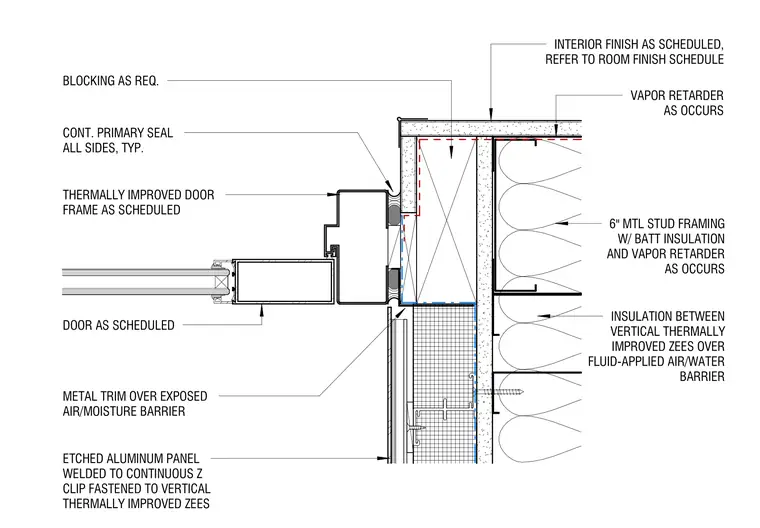

An exterior door frame sits adjacent to a cold-formed steel stud wall clad with etched aluminum panels. The six-inch metal stud framing includes batt insulation, an interior vapor retarder, and scheduled interior finishes. The exterior features vertical thermally improved zees installed over a fluid-applied air and water barrier with intermediate insulation. An etched aluminum panel is welded to a continuous z-clip fastened to the vertical zees. A continuous primary seal is applied to all sides of the thermally improved door frame, with metal trim covering the exposed air and moisture barrier.
THERMALLY IMPROVED DOOR FRAME AS SCHEDULED METAL TRIM OVER EXPOSED AIR/MOISTURE BARRIER 6" MTL STUD FRAMING W/ BATT INSULATION AND VAPOR RETARDER AS OCCURS BLOCKING AS REQ. CONT. PRIMARY SEAL ALL SIDES, TYP. DOOR AS SCHEDULED ETCHED ALUMINUM PANEL WELDED TO CONTINUOUS Z CLIP FASTENED TO VERTICAL THERMALLY IMPROVED ZEES INSULATION BETWEEN VERTICAL THERMALLY IMPROVED ZEES OVER FLUID-APPLIED AIR/WATER BARRIER INTERIOR FINISH AS SCHEDULED, REFER TO ROOM FINISH SCHEDULE VAPOR RETARDER AS OCCURS
