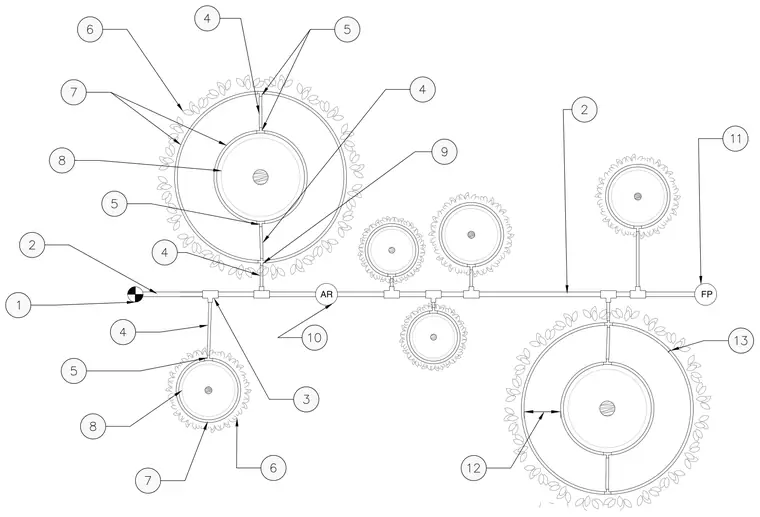

An air vacuum relief valve is installed along a main supply line featuring branch piping and circular distribution loops with multiple connection points. The assembly incorporates labeled callout numbers designating the piping layout, valves, and ring components. The mainline connects to the concentric ring configurations using standard tee fittings and piping extensions.
