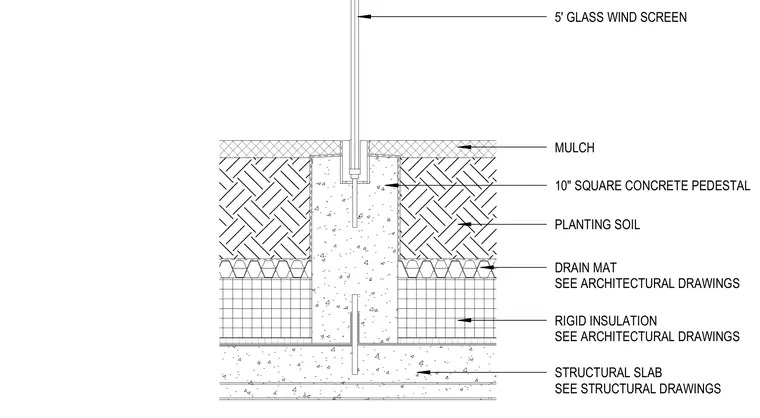

A five-foot glass wind screen is anchored into a ten-inch square concrete pedestal that extends through the surrounding landscaping layers. The assembly sits above a structural slab, which receives rigid insulation and a drainage mat detailed on architectural and structural drawings. Planting soil and mulch finish the grade on either side of the pedestal base.
DRAIN MAT SEE ARCHITECTURAL DRAWINGS STRUCTURAL SLAB SEE STRUCTURAL DRAWINGS 10" SQUARE CONCRETE PEDESTAL PLANTING SOIL RIGID INSULATION SEE ARCHITECTURAL DRAWINGS MULCH 5' GLASS WIND SCREEN
