A rotor pop-up sprinkler connects to a twelve-inch PVC lateral line using an adjustable pre-fabricated double swing joint assembly with a twelve-inch minimum length. The swing joint angle must not exceed forty-five degrees to prevent stress. The sprinkler head sits flush with the compacted soil finish grade.

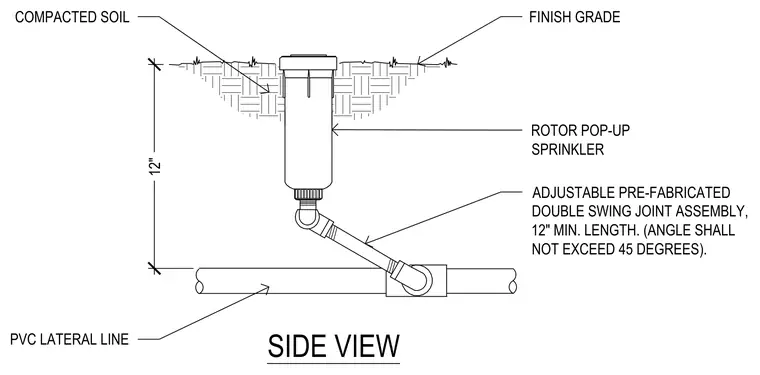

COMPACTED SOIL FINISH GRADE ROTOR POP-UP SPRINKLER ADJUSTABLE PRE-FABRICATED DOUBLE SWING JOINT ASSEMBLY, 12" MIN. LENGTH. (ANGLE SHALL NOT EXCEED 45 DEGREES). SIDE VIEW 12" PVC LATERAL LINE
