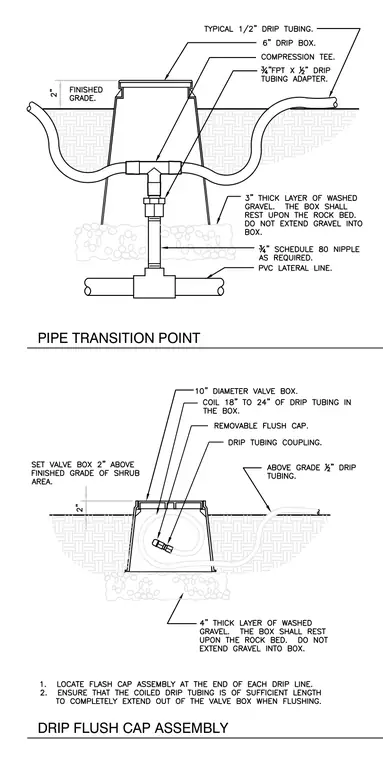

A six-inch or ten-inch diameter drip box rests upon a three to four-inch thick layer of washed gravel bed, set two inches above the finished grade of the shrub area. The box contains typical one-half-inch drip tubing, compression tees, adapters, couplings, and a removable flush cap with coiled drip tubing. A three-quarter-inch schedule 80 nipple connects to the PVC lateral line below. The gravel bed is restricted from extending inside the box.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
