Control Valve - Drip Circuit

Materials

Elements

Waterproofing / Flashing Connections / Plates

About this detail

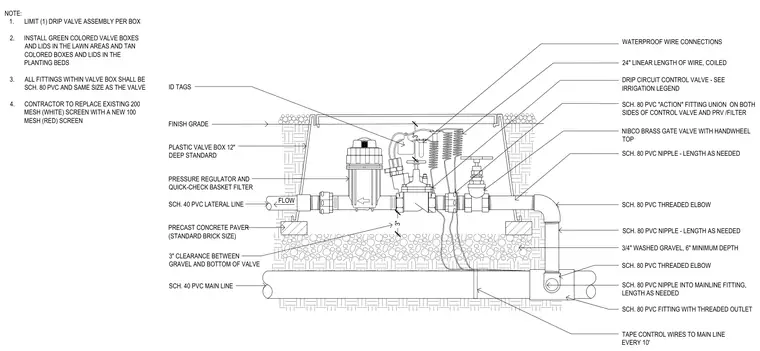

An underground drip circuit control valve assembly is housed within a twelve-inch deep standard plastic valve box. The assembly connects to a schedule forty PVC main line and lateral line, featuring a pressure regulator and quick-check basket filter, a Nibco brass gate valve with handwheel top, and a drip circuit control valve. Schedule eighty PVC unions and threaded elbows are installed on both sides of the control valves, with schedule eighty PVC nipples sizing the connections as needed. Waterproof wire connections join twenty-four inches of coiled control wire taped to the main line every ten feet. The entire assembly rests above a minimum depth of six inches of three-quarter-inch washed gravel with a three-inch clearance between the gravel and the bottom of the valve, supported by precast concrete pavers matching standard brick size at finish grade.
