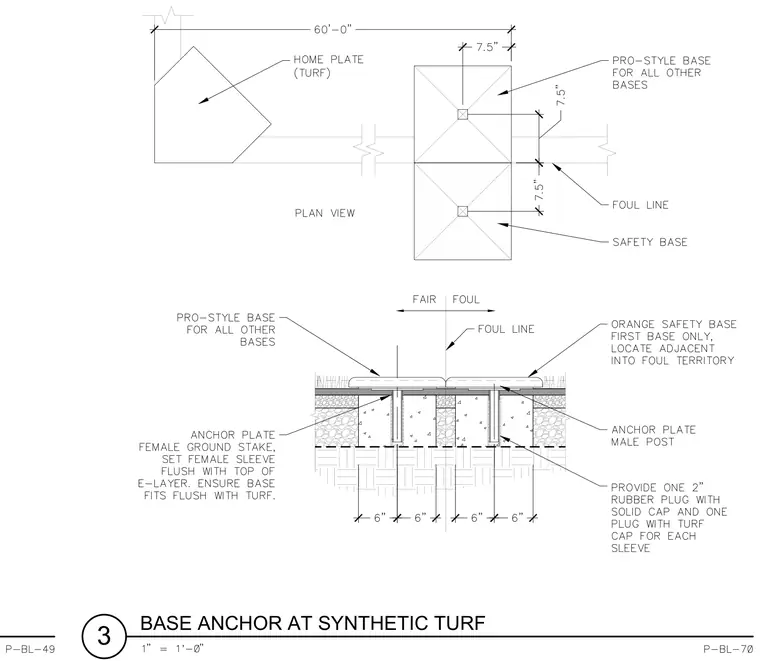

A pro-style base and orange safety base are integrated into a synthetic turf system with an underlying e-layer, aggregate base, and subgrade. The assembly utilizes an anchor plate with a female ground stake and sleeve set flush with the top of the e-layer, paired with an anchor plate and male post. A two-inch rubber plug with a solid cap and a plug with a turf cap are provided for each sleeve. The safety base is located adjacent into foul territory.
