L-RQYNC — Overhead Unistrut - Elevation

Landscape · L-RQYNC

Overhead Unistrut - Elevation

Scale: 1/2" = 1'-0"
Units: imperial
Sheet: LO-LF4.1.6
Discipline: Landscape

Materials

Elements

Ceilings Bracing Connections / Plates

Connections

Bracing Connection

Text on the drawing

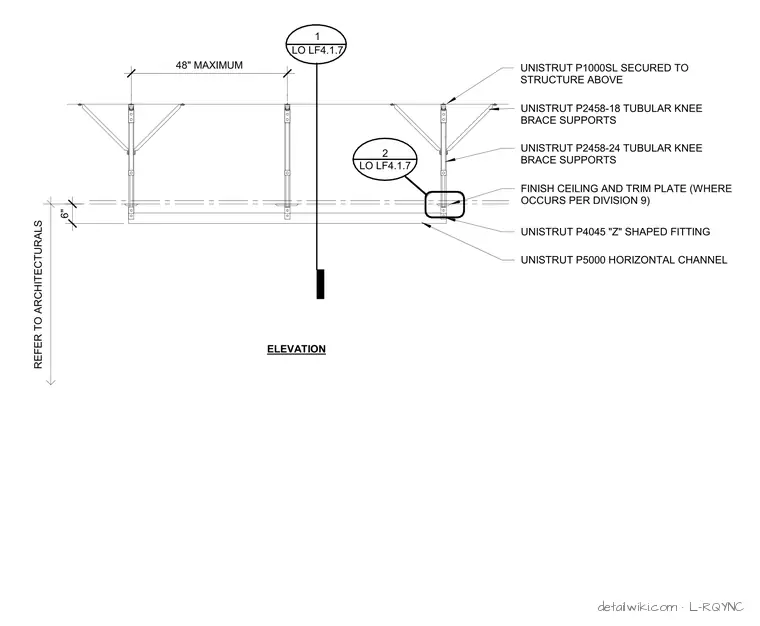

REFER TO ARCHITECTURALS ELEVATION FINISH CEILING AND TRIM PLATE (WHERE OCCURS PER DIVISION 9) UNISTRUT P4045 "Z" SHAPED FITTING UNISTRUT P5000 HORIZONTAL CHANNEL UNISTRUT P2458-24 TUBULAR KNEE BRACE SUPPORTS UNISTRUT P2458-18 TUBULAR KNEE BRACE SUPPORTS UNISTRUT P1000SL SECURED TO STRUCTURE ABOVE 1 LO LF4.1.7 LO LF4.1.7 2 6" 48" MAXIMUM
