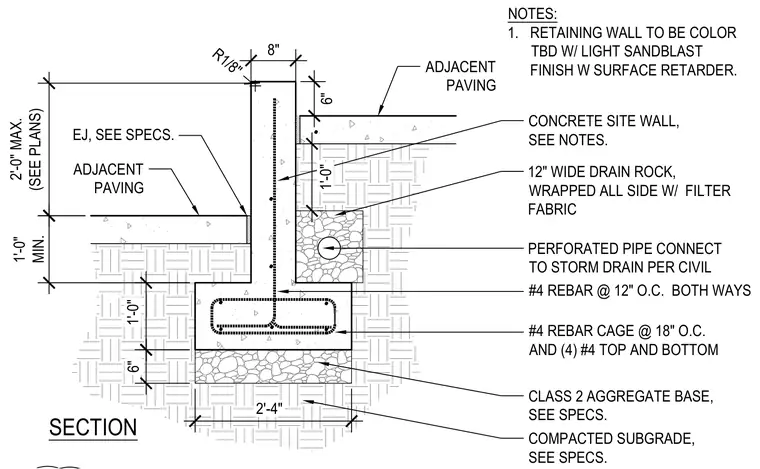

This cast-in-place concrete retaining wall rests on a reinforced concrete footing set upon a class 2 aggregate base and compacted subgrade. The wall stem features number 4 reinforcing bars at twelve inches on center both ways, while the footing contains a number four rebar cage at eighteen inches on center with four number four bars top and bottom. A twelve-inch wide trench of drain rock wrapped in filter fabric encases a perforated pipe that connects to the storm drain per civil drawings. An expansion joint is provided between the wall and adjacent concrete paving.
8" R1/8" 2'-4" 6" 1'-0" NOTES: 1. RETAINING WALL TO BE COLOR TBD W/ LIGHT SANDBLAST FINISH W SURFACE RETARDER. ADJACENT PAVING CONCRETE SITE WALL, SEE NOTES. PERFORATED PIPE CONNECT TO STORM DRAIN PER CIVIL 12" WIDE DRAIN ROCK, WRAPPED ALL SIDE W/ FILTER FABRIC #4 REBAR @ 12" O.C. BOTH WAYS #4 REBAR CAGE @ 18" O.C. AND (4) #4 TOP AND BOTTOM CLASS 2 AGGREGATE BASE, SEE SPECS. COMPACTED SUBGRADE, SEE SPECS. EJ, SEE SPECS. 1'-0" 2'-0" MAX. (SEE PLANS) SECTION 1'-0" MIN. ADJACENT PAVING 6"
