Landscape · L-RNNMJ

Valve Box and Gate Valve Assembly at Irrigation Main Line

Materials

Elements

About this detail

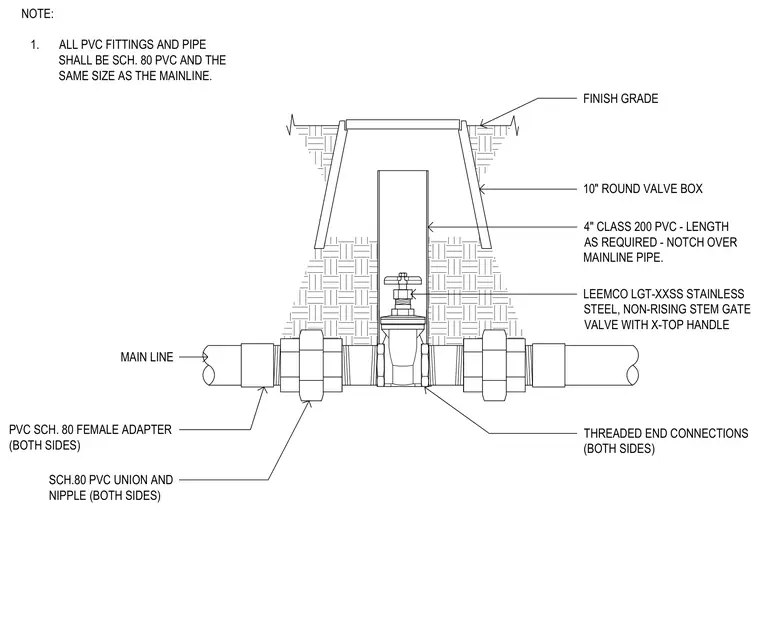

An irrigation main line incorporates a Leemco stainless steel non-rising stem gate valve with an X-top handle, housed within a ten-inch round valve box set flush with the finish grade. The mainline connects to the valve using Schedule 80 PVC unions, nipples, and female adapters on both sides. A four-inch Class 200 PVC sleeve, notched over the mainline pipe, extends upward through the backfill to protect the valve stem. All PVC fittings and pipe match the size of the mainline.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
