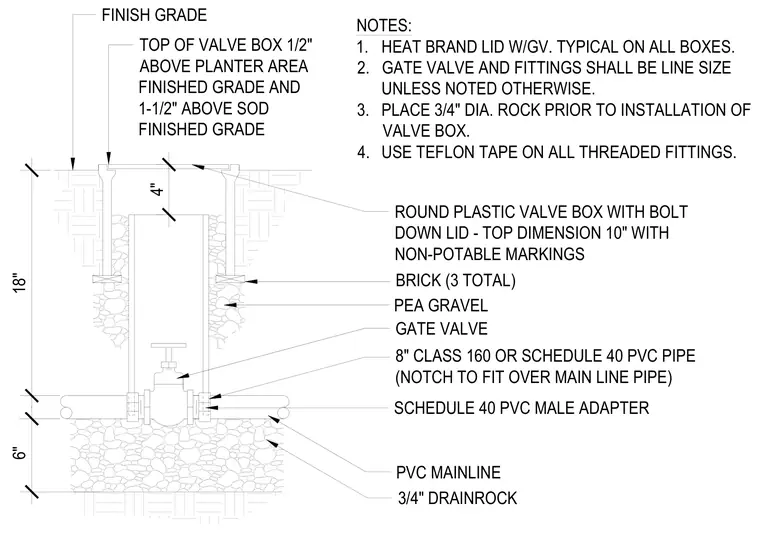

An eight-inch class 160 or schedule 40 PVC mainline connects to a gate valve using schedule 40 PVC male adapters and threaded fittings sealed with Teflon tape. The gate valve sits above a six-inch layer of three-quarters-inch drainrock and is enclosed by an eight-inch PVC pipe notched to fit over the mainline pipe. Pea gravel and three total bricks surround the valve enclosure below grade. A round plastic valve box with a bolt-down lid, non-potable markings, and a ten-inch top dimension caps the assembly. The top of the valve box is positioned one-half inch above finished grade in planter areas and one and one-half inches above finished grade in sod areas, with a four-inch depth dimension from the lid to the surrounding grade. The lid is heat branded with GV.
3/4" DRAINROCK SCHEDULE 40 PVC MALE ADAPTER PVC MAINLINE 8" CLASS 160 OR SCHEDULE 40 PVC PIPE (NOTCH TO FIT OVER MAIN LINE PIPE) GATE VALVE BRICK (3 TOTAL) PEA GRAVEL FINISH GRADE ROUND PLASTIC VALVE BOX WITH BOLT DOWN LID - TOP DIMENSION 10" WITH NON-POTABLE MARKINGS TOP OF VALVE BOX 1/2" ABOVE PLANTER AREA FINISHED GRADE AND 1-1/2" ABOVE SOD FINISHED GRADE NOTES: 1. HEAT BRAND LID W/GV. TYPICAL ON ALL BOXES. 2. GATE VALVE AND FITTINGS SHALL BE LINE SIZE UNLESS NOTED OTHERWISE. 3. PLACE 3/4" DIA. ROCK PRIOR TO INSTALLATION OF VALVE BOX. 4. USE TEFLON TAPE ON ALL THREADED FITTINGS. 18" 4" 6"
