A 3-inch flanged hydrometer connects inline with schedule 80 PVC piping using threaded adapters and matching flanged fittings on both sides. The entire assembly rests on a bed of 3 inches of compacted gravel and 6-inch concrete masonry unit blocks, enclosed by a standard 18-inch deep valve box with an extension up to the finish grade. System wires route in conduit with 30 inches of coiled wire and waterproof connections to the flow sensor cable.

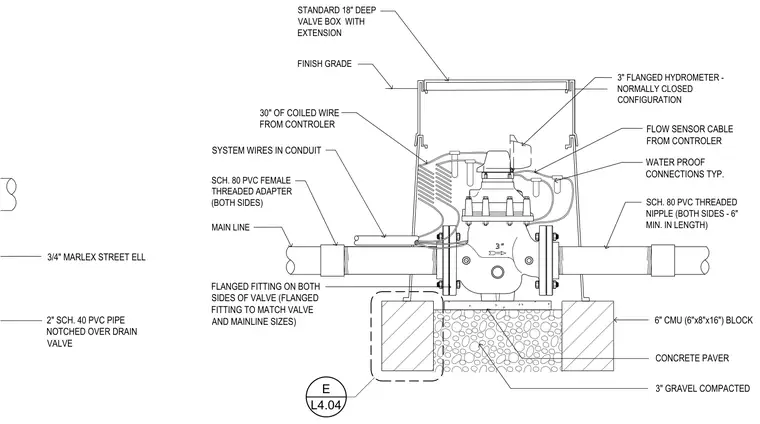

MAIN LINE SCH. 80 PVC THREADED NIPPLE (BOTH SIDES - 6" MIN. IN LENGTH) SCH. 80 PVC FEMALE THREADED ADAPTER (BOTH SIDES) FLANGED FITTING ON BOTH SIDES OF VALVE (FLANGED FITTING TO MATCH VALVE AND MAINLINE SIZES) STANDARD 18" DEEP VALVE BOX WITH EXTENSION 3" FLANGED HYDROMETER - NORMALLY CLOSED CONFIGURATION FINISH GRADE 6" CMU (6"x8"x16") BLOCK SYSTEM WIRES IN CONDUIT 30" OF COILED WIRE FROM CONTROLER FLOW SENSOR CABLE FROM CONTROLER WATER PROOF CONNECTIONS TYP. 3" GRAVEL COMPACTED CONCRETE PAVER E L4.04 2" SCH. 40 PVC PIPE NOTCHED OVER DRAIN VALVE 3/4" MARLEX STREET ELL
