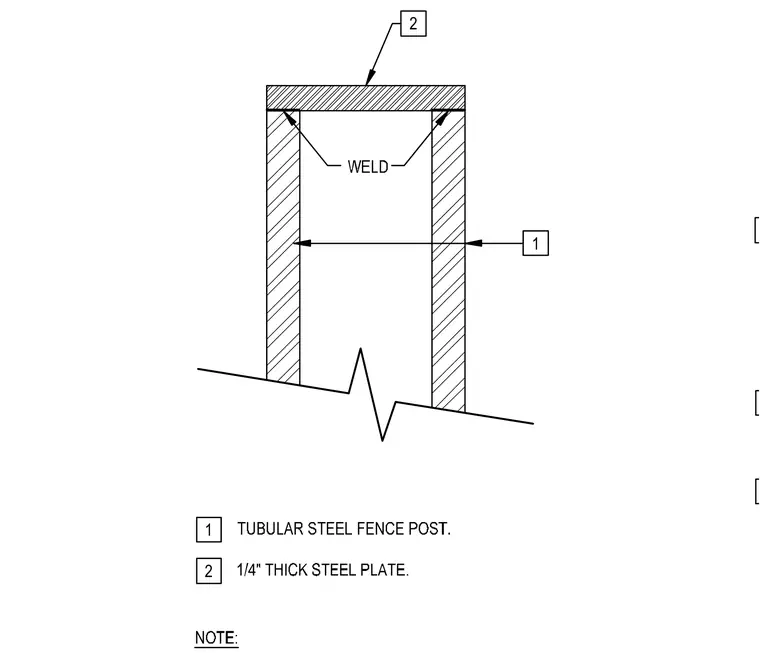

A one-quarter-inch thick steel plate caps the top of a tubular steel fence post. The cap plate is secured to the hollow structural section post with perimeter welds.
1/4" THICK STEEL PLATE. WELD TUBULAR STEEL FENCE POST. 1 2 1 2 NOTE:
