Landscape · L-RH6GZ

Site Bench Wood Timber Seat and Concrete Footing Detail

Materials

Concrete Steel Stainless Steel Timber / Wood

Elements

Foundations / Footings Drainage Site / Paving Anchors / Embeds

Connections

Bolted Connection

About this detail

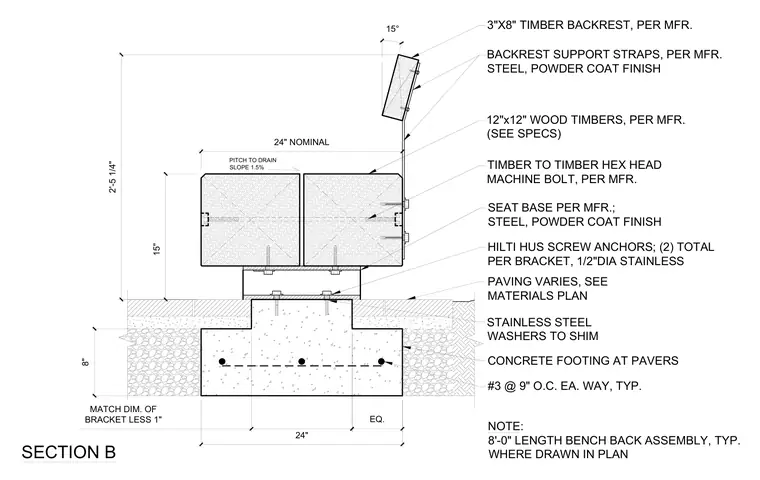

An outdoor site bench constructed from 12" by 12" wood timbers resting on a powder-coated steel seat base, anchored to a concrete footing with two 1/2-inch diameter stainless steel Hilti HUS screw anchors per bracket. Stainless steel washers are used for shimming beneath the seat base over varying paving materials. A 3" by 8" timber backrest is supported by steel backrest support straps secured with timber-to-timber hex head machine bolts. The concrete footing features #3 reinforcing bars at 9 inches on center each way. The bench assembly is sloped at 1.5 percent to drain and has an overall length of 8 feet.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
