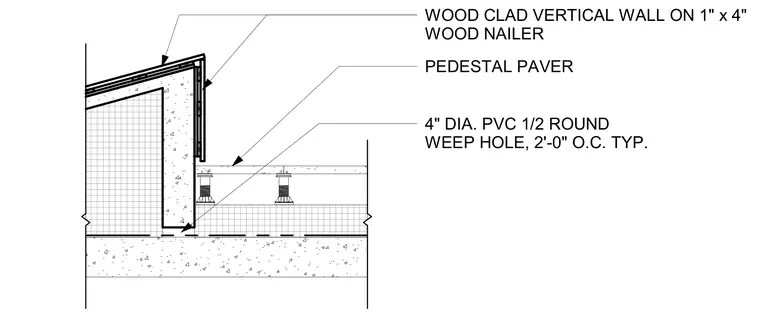

A wood clad vertical wall is fastened to one by four inch wood nailers anchored to the concrete structure. Pedestal pavers are installed adjacent to the vertical wall assembly. Four inch diameter PVC half round weep holes are spaced at two feet on center typically.
4" DIA. PVC 1/2 ROUND WEEP HOLE, 2'-0" O.C. TYP. WOOD CLAD VERTICAL WALL ON 1" x 4" WOOD NAILER PEDESTAL PAVER
