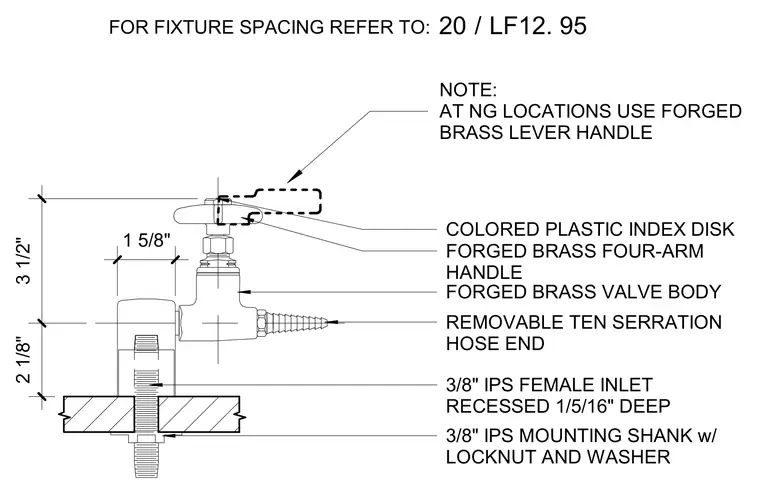

This assembly consists of a forged brass valve body mounted to a deck with a 3/8-inch iron pipe size mounting shank secured by a locknut and washer. The connection features a 3/8-inch iron pipe size female inlet recessed 1-5/16 inches deep into the deck substrate. Operation is controlled via a forged brass four-arm handle topped with a colored plastic index disk, with a forged brass lever handle specified for natural gas locations. A removable ten-serration hose end attaches to the outlet for secure tubing attachment.
COLORED PLASTIC INDEX DISK FORGED BRASS FOUR-ARM HANDLE REMOVABLE TEN SERRATION HOSE END 3/8" IPS FEMALE INLET RECESSED 1/5/16" DEEP FORGED BRASS VALVE BODY 3/8" IPS MOUNTING SHANK w/ LOCKNUT AND WASHER 2 1/8" 3 1/2" 1 5/8" FOR FIXTURE SPACING REFER TO: / 20 LF12. 95 NOTE: AT NG LOCATIONS USE FORGED BRASS LEVER HANDLE
