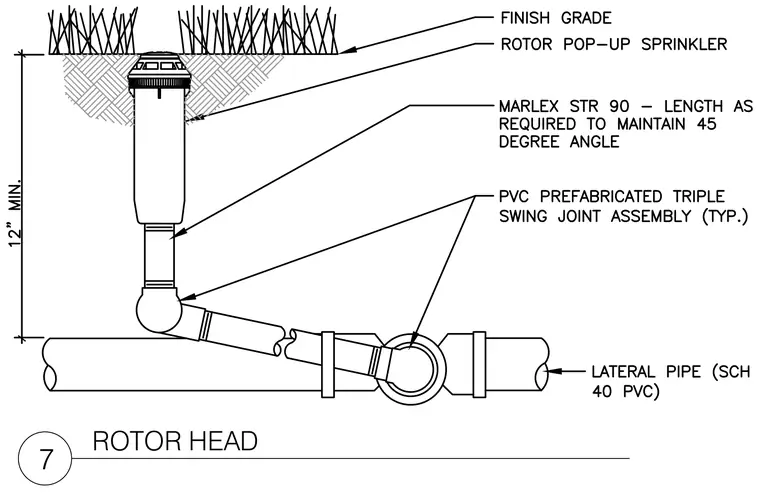

A rotor pop-up sprinkler is positioned flush with the finish grade and connected below to a PVC prefabricated triple swing joint assembly typically. The Marlex street 90 fitting is cut to a length as required to maintain a forty-five degree angle. The swing joint connects downward to a schedule forty PVC lateral pipe set at a minimum twelve inches below grade.
