Unistrut Support Framing Around Ductwork Obstruction

Materials

Steel

Elements

Parapets Bracing

Connections

Bracing Connection

About this detail

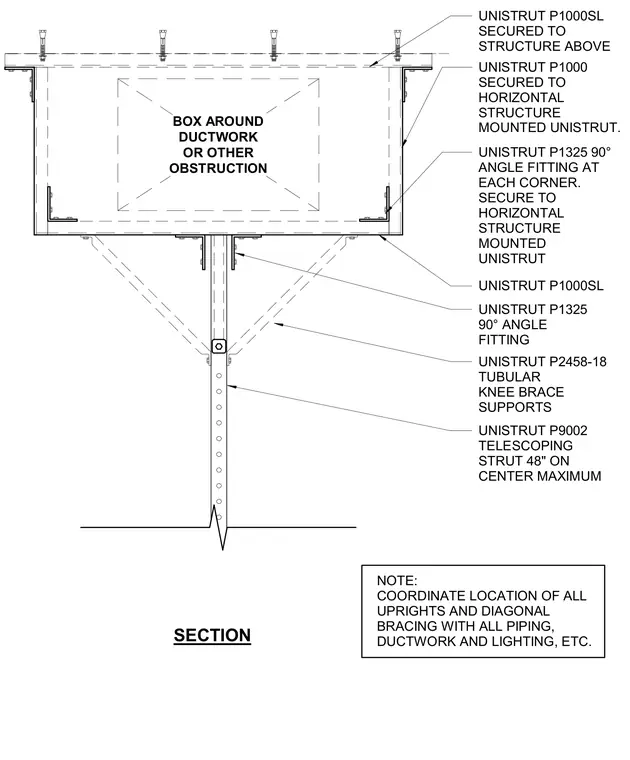

An overhead support assembly uses Unistrut P1000SL slotted channel secured to the structure above, with a horizontal framework formed by Unistrut P1000 channels. Unistrut P1325 ninety-degree angle fittings connect each corner and secure the horizontal structure. Unistrut P9002 telescoping struts spaced at forty-eight inches on center maximum provide vertical drops. Unistrut P2458-18 tubular knee brace supports attach to the uprights using Unistrut P1325 ninety-degree angle fittings to provide lateral stability. The entire framework boxes around ductwork or other overhead obstructions, requiring coordination with all piping, ductwork, and lighting.
