An interior swinging door frame is anchored to a four and one-half inch partition wall finished with gypsum board as scheduled. A continuous bead of silicone sealant over a backer rod is applied to each side of the frame junction. Metal corner beads finish the wall edges, and a vapor retarder is installed as occurs within the stud cavity. The door and frame are installed as scheduled with locations referenced on the floor plans.

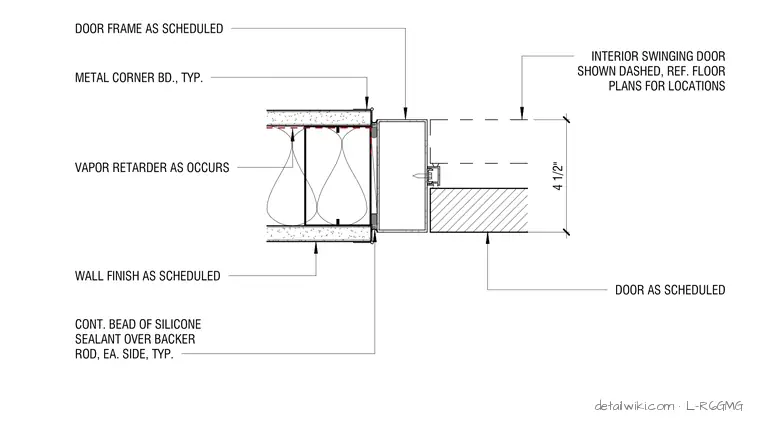

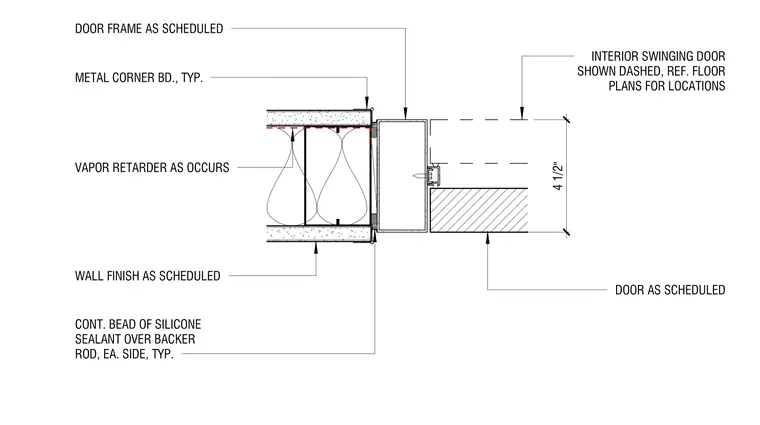

DOOR FRAME AS SCHEDULED DOOR AS SCHEDULED INTERIOR SWINGING DOOR SHOWN DASHED, REF. FLOOR PLANS FOR LOCATIONS 4 1/2" WALL FINISH AS SCHEDULED CONT. BEAD OF SILICONE SEALANT OVER BACKER ROD, EA. SIDE, TYP. METAL CORNER BD., TYP. VAPOR RETARDER AS OCCURS
