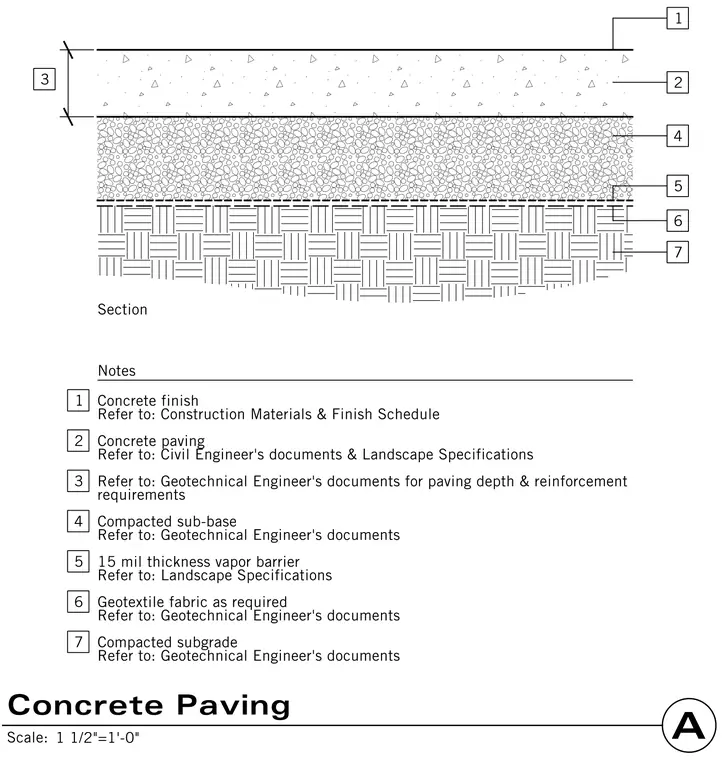

A concrete paving section features a concrete finish layered over concrete paving, supported by a compacted sub-base. A 15 mil thick vapor barrier and geotextile fabric are installed above the compacted subgrade.
