Landscape · L-R4X6Y

Ecoroof Drain

Materials

Elements

Roofs Insulation Drainage Roof / Floor Openings

About this detail

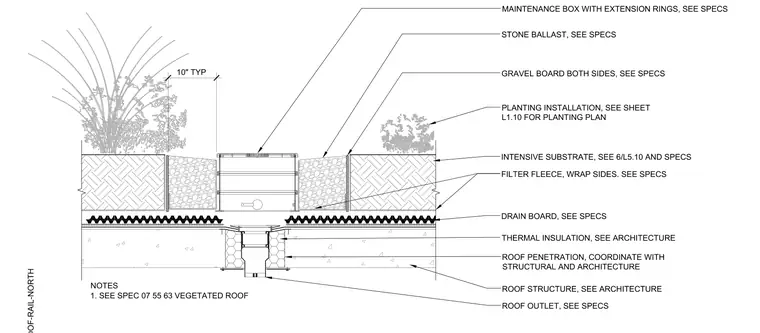

Vegetated roof drain assembly set within an intensive ecoroof system over the architectural roof structure and thermal insulation. A roof outlet is integrated at the penetration with surrounding stone ballast and gravel boards flanking both sides. Filter fleece wraps the sides of the intensive substrate beds, sitting above a dimpled drain board. A maintenance box with extension rings terminates flush with the planting installation.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
