Civil · L-R4CD3

Tooled Concrete Expansion Joint

Materials

Concrete Reinforced Concrete

Elements

Expansion / Control Joints Site / Paving Reinforcing

Connections

Expansion / Slip Connection

About this detail

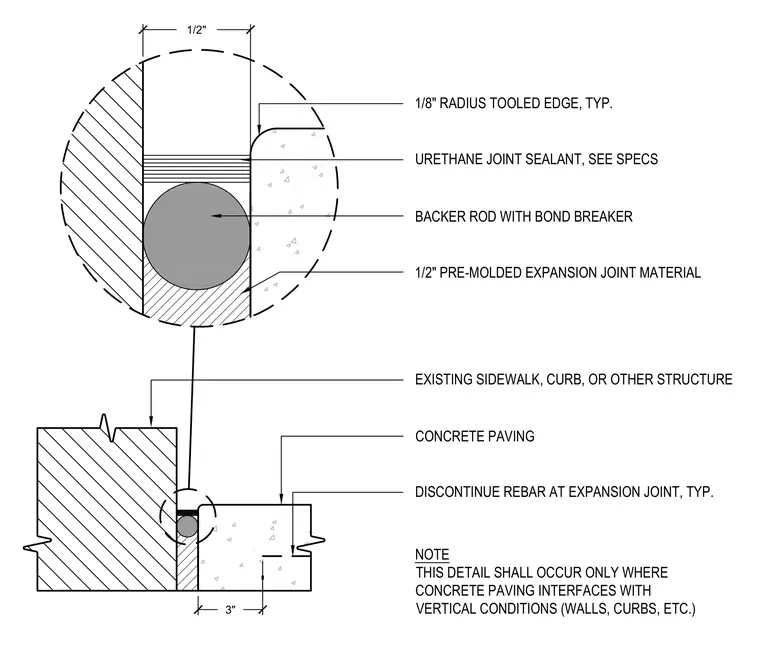

This expansion joint assembly occurs where concrete paving interfaces with vertical conditions such as existing sidewalks, curbs, or other structures. A half-inch pre-molded expansion joint material separates the concrete paving from the vertical structure, with reinforcing rebar discontinued at the joint. A backer rod with a bond breaker is placed within the joint space beneath a urethane joint sealant. The top edge of the concrete paving features a typical one-eighth-inch radius tooled edge.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
